ARISTOMAT GL

ARISTOMAT Grand Line Series - High speed cutters with most modern technology

After the more than successful market introduction, ARISTO once again increases the productivity of their large GL-machines. With a completely new steering system, the throughput for large format processing with these production machines has been improved considerably. This makes the plotter even more interesting for automated volume production, from panel or roll materials.

Newly designed cutting table
Impresses with its non-fussy design and concentration on the basic essentials: a from all sides freely accessible work surface, extremely robust traverse bridge with minimal protruding at the sides and belt drive in all axis for slip-free drive. Powerful AC-servomotors enable the high throughput and the modern CAN-Bus-steering technique reduces the number of mechanical parts.

Powerful vacuum technique
Up to 90 controllable zones hold even the smallest of remnants safely on the work surface.

Simple operating The CutterControlPanel Software offers totally new possibilities of user guidance. Via PC-screen, all necessary information on cutting data is graphically depicted and the user can comfortably steer the processing functions via mouse click. ARISTOMAT Grand Line Series - High speed cutters with most modern technology Basic functions, such as hand steering or setting the origin, can be carried out from any area of the cutter using the mobile operating unit.

Material transport
To automate the processing, the machines can be supplemented with a revolving conveyor and a powered winding device for roll materials.

Multi-functional tool heads

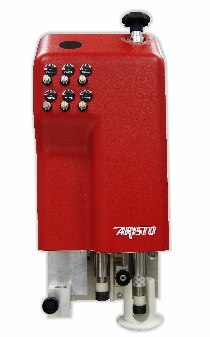

for oscillating cutting, fixed cutting, scratching, creasing, marking...without having to carry out a tool change.. With up to three tangentially-steered tool axis and one or two marking modules to hold various pens, the MultiHead IV offers all of this. This variety of possibilities for material processing can be supplemented with an integrated colour camera for the automatic measuring system Automatic Eye and the combination of a high-frequency routing spindle with a controlled z-axis. So can, for example, a printed material panel be measured by the Automatic Eye system and subsequently cut out exactly on the outlines.

  • Conveyor system (not for ARISTOMAT GL 3152-8)
  • Ultrasonics collision shut-off
  • PC table
  • Motorized unwinding device for large material rolls
  • Material clamp system
Aristomat
Enlarge image



GL 2O32-8GL 2232-8GL 3132-8GL 3152-8
Outer dimensions (WxLxH)* mm 2600 x 4220 x 10902960 x 4220 x 10903800 x 4220 x 10903800 x 6200 x 1090
Max. Work area (WxL)** mm 2040 x 32002400 x 32003180 x 32003180 x 5180
Speed max. 2300 mm/s max. 1700 mm/s adjustable via software CutterControlPanel
Acceleration max. 2 G max. 1.5 G adjustable via software CutterControlPanel
Input buffer PC controlled1
Suitable for material thickness max. 55 mm
Static repeatability ± 0.08 mm
Control circuit and drives Digital AC servo motors
Data format HPGL compatible, with extended command set
Vacuum 5.5 kW or 2 x 5.5 kW pump systems adjustable matrix vacuum zones 2 x 5.5.kW or 3 x 5.5 kW pump systems,
Voltage 3-phase fixed connection, 400 V, 50 Hz or 460 V, 60 Hz; 20 A with a 5.5 kW pump system,32 A with a 2x 5.5 kW pump system and 50 A with a 3 x 5.5 kW pump system
Interface RS 232C/V.24
Operating Universal control software CutterControlPanel for Windows XP;multilingual: English, German, French, Italian, Polish, Dutch, Czech, other languages on request. Mobile control pad.
Safety / Certification CE-label; Emergency stop; Light barrier; Collision shut-off
* The dimensions only refer to the basic machines without tool head, material transport systems and unloading table.
** Work area for one tool. With machines with conveyor the work width is reduced by 100 mm.
