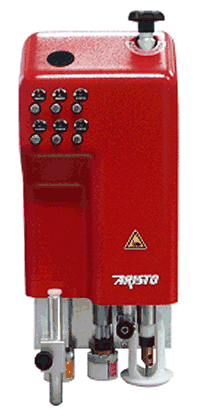

MultiHead OT.T.T.M.P. IV
Multifunctional tool head with 3 tangentially controlled tool positions

The MultiHead OT.T.T.M.P. IV offers three tangentially controlled tool axis: one high-frequency oscillating and two fixed. An integrated laser pointer guarantees the precise positioning of the origin. With the standard marking device the individual products are labelled. A second marking device is optional.
All tools are computer-controlled. This enables aligning, cutting, creasing and marking without changing the tools, which increases the through-put and therefore also the profitability of this tool head.
The MultiHead OT.T.T.M.P. IV can be fitted with all available MultiHead tools for processing manifold different materials, e.g. cardboard, corrugated cardboards, laminates, PUR-foam, printed blankets, coating plates and others up to a thickness of approx. 20 mm.

Motorized stroke adjustment
A powered stroke adjustment increases the maximal material thickness which can be processed to approx. 35 mm. The tool stroke is infinitely variable between 12 mm - 40 mm. This way the stroke can always be optimally adjusted to suit the material thickness. This considerably reduces the waiting times, particularly when processing thin materials.

Integrated color camera
The intelligent camera system Automatic Eye enables quick and accurate cutting results of printed originals, even with misalignment and distortion
  • automatic identification of fiducials from plot file
  • live image on the PC monitor shows placing and adjustment of the fiducials and/or in the simulation mode, the cutting outlines
  • automatic compensating of material misalignment, - distortions, - stretching and - shrinkage.
  • simple handling of the camera focusing by vertical adjustment of the camera at the MultiHead.
  • adjustable lighting with white LEDs

Choice of material
  • cardboard
  • corrugated cardboard up to 20 mm
  • cartons
  • laminates
  • PUR-foam
  • printing blankets
  • coating plates
  • preprinted vinyl films, reflective sheetings
  • textile and technical fabrics
  • soft, elastic and metal-reinforced gasket materials
  • and others
