A new solution for a single-ply automatic cutting system; ideal for samples and customized production of textiles or technical materials.

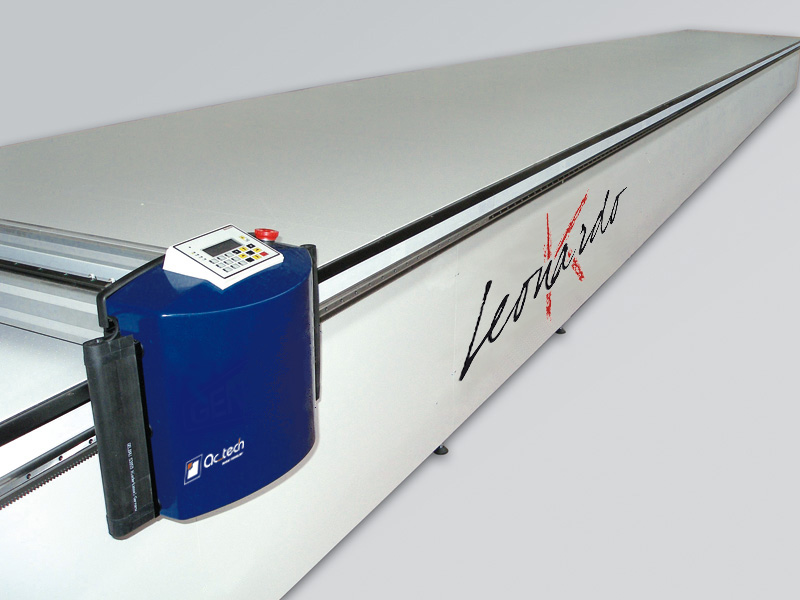

leonardo single ply automatic cutting system
Leonardo is a CNC-Automatic cutter designed for a medium duty manufacturing applications and thanks to its flexibility it is able to cut a wide range of fabrics and technical textile.
Moreover it can be easily interfaced with all major software available on the market. High speed and acceleration allow cutting even complex shapes.

The machine can support a 3-axis multi-tool head with either fixed or a pizza-wheel knife and it even supports a high-speed inkjet printing head to print logo or bar-code directly on the material.

Leonardo can operate with a laser cutting head or a router where the application demands and uses all the latest computer controls and drive technology.

The vacuum cutting table is strong and adjustable, and can be adapted to a wide variety of compact work environments where space is concern.
It uses a high precision linear bearing and rail system with self lubricated bearings requiring no maintenance. Besides the high-powered motors, rack and pinion drive system make the machine’s length virtually unlimited.

The machine includes a “safe edge” rubber protection system keeping the operator safe from moving components. All these advanced features are supported economically while Leonardo remains almost maintenance free and supports on-line remote servicing and diagnostics.

Markets: Furniture, Automotive, Apparel, Gaskets.

Leonardo can offer complete solutions for the cutting of many kinds of materials, among which gaskets, laminates, technical textiles and materials.
  • Single ply cutting system for samples or mass-production for various industries.
  • Excellent cut quality without the need of polythene foil and underlay paper.
  • Height from ground m 0.85 (adjustable).
  • Reinforced cutting bridge for the installation of other cutting tools; new control box and PC panel.
  • Electric connection V 240 / 380, 50 Hz.
  • Compressed air 7 bar.
  • Windows operating system.
  • Remote control via modem for long-distance assistance to operator.
  • Compatible with HPGL, DXF, ISO/CUTFILE.

leonardo - gaskets, laminates, technical textiles
Enlarge image

  • Automotive
  • Aircraft and boat interiors
  • Coverings
  • Tents
  • Sails
  • Parachutes
  • Paragliders
  • Airbags
  • Inflatables
  • Tenso structures
  • Filters
  • Carbon fibre
  • Kevlar
  • Membrane
  • Many more...


  • Cotton
  • Polyester
  • Artificial leather
  • Composite materials
  • Rubber
  • Plastics
  • Carpets
  • Laminates
  • Carbon fiber
  • Goretex
  • Cartons
  • Paper
  • Glass fiber
  • Denim/jeans
  • Felt
  • Technical textiles
  • Sails
  • Tents
  • Vvynil
  • Various technical fabrics


Standard tools: drag knife, pizza-wheel, plotting pen.
Optional tools: driven pizza-wheel, double cutting head, laser cutting, vibrating knife, rotary punch, router.
Vacuum bed: Also reverse blow for easy removal of materials.
Cutting width: 1,5 to 4 meters
Min. cutting length: 2,24 meters
Max. cutting length: no limit
