Automatic eye
An intelligent camera system for the exact cutting of printed patterns

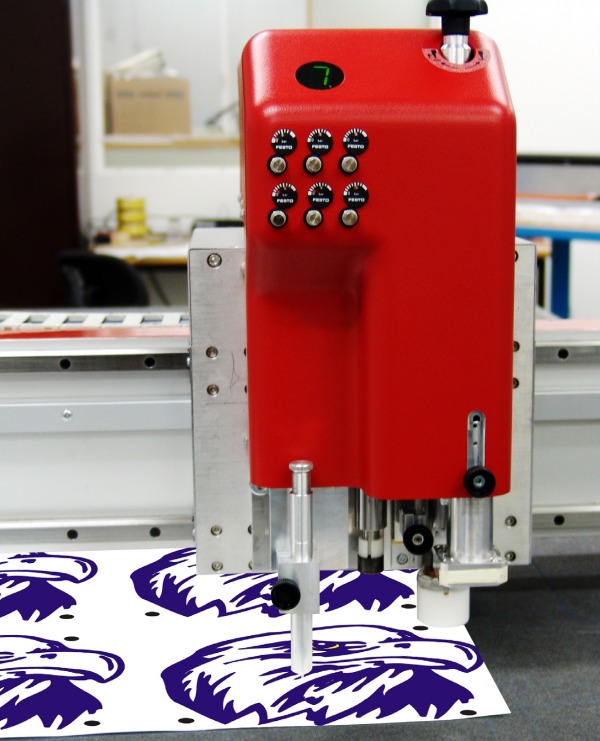

The intelligent camera system Automatic Eye
with a color camera integrated in the MultiHead IV
allows users to get quick and accurate cutting results
of printed originals for sample making and mass
production.
The camera system identifies and measures freely
placable fiducials automatically. It compensates for
misalignment, distortion and material growth or
shrinkage. Corrected data is sent automatically to
the cutting machine.
For testing purposes users can select the simulation
mode. This means, the camera follows the cutting
contours instead of the cutting tool.
| Specifications for Automatic Eye System with MultiHead IV |
| Camera system | CCD color camera with BNC connector, adjustable lighting with white LEDs, simple handling of the camera focussing by vertical adjustment of the camera at the MultiHead IV; Frame Grabber card, fully integrated control, learning software to identify fiducials automatically |

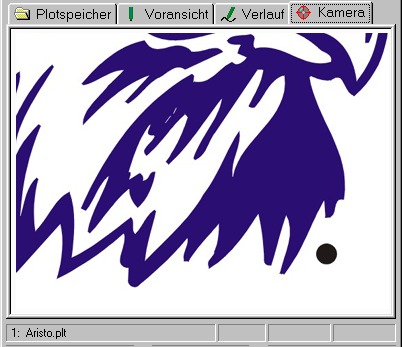

| Monitor | Live image on the PC monitor shows placing and adjustment of the fiducials and/or in the simulation mode the cutting outlines |
| Software | Control software for measurements, correction and processing of printed originals |
| Data format | HPGL standard compatible |
| Fiducial | Freely placable circular fiducials |
| Search area | Limited by display area of camera |
| Compensation | Of offset, skew, stretch, material growth and shrinkage, etc. |
| System requirements | Windows XP; free PCI-Slot for Frame Grabber card necessary |
|
|
|
