ROUTING DEVICE


Powerful Routing Device for the processing of all nonmetallic solid materials

3-phase asynchronous motor HF spindle 4040 DC and 4040 DC-S
Speed4040DC 0 - 50.000 rpm, adjustable via pc software ARISTO Cutter Control Panel
  4040DC-S 0 - 60.000 rpm, adjustable via pc software ARISTO Cutter Control Panel
Torque max.17 Ncm (dependent on the cooling system)
Direction of rotationanticlockwise
Power4040DC max. 800 W (dependent on the cooling system)
4040DC-S max. 1000 W (dependent on the cooling system)
Bearing systemceramic, 3-precision bearings with lifetime lubrication
Tool changemanually
Sealing air0.5 - 0.8 bar, dry and dust free
Collets 1.5 - 6.35 mm
Ambient conditions + 5° C up to + 40° C, max. 2000 m N.N

Regulated Z-axis
Lift electrically / pneumatically
Z-position adjustable via pc software ARISTO Cutter Control Panel
Chip exhaust unit to connect to an industrial vacuum cleaner

Compressed air neccessary
Regulated pressure 6 bar pulse-free
Air flow min. 30 l/min (1.06 cfm); water and oil-free

Vacuum cleaner neccessary
Air flow min. 80 l/s
Vacuum approx. 0.2 bar
Connector 40 mm diameter

Recommended industrial vacuum cleaner (optionally available)
Nilfisk Advance GB 726-L with Gore-Filter and sound damping cover
Power 2.2 kW
Tank capacity 46 l
Air flow 86 l/s
Suction hose 50 mm diameter
Power-On ARISTOMAT controlled

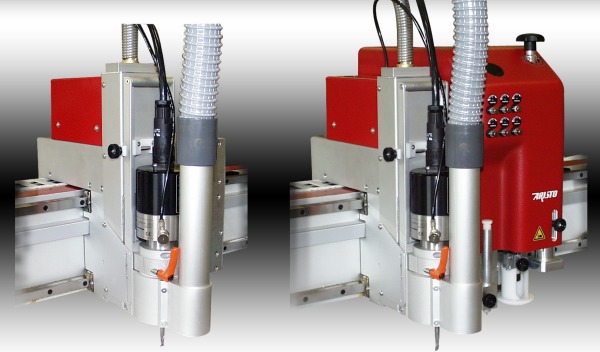

Router
